2006 *******Thermwood CS45 Used flat table CNC #BM2359
2006 *******Thermwood CS45 Used flat table CNC #BM2359
LEASE or PURCHASE this MACHINE!
Ontario, Canada
Description
2007 Thermwood CS45 Used flat table CNC.

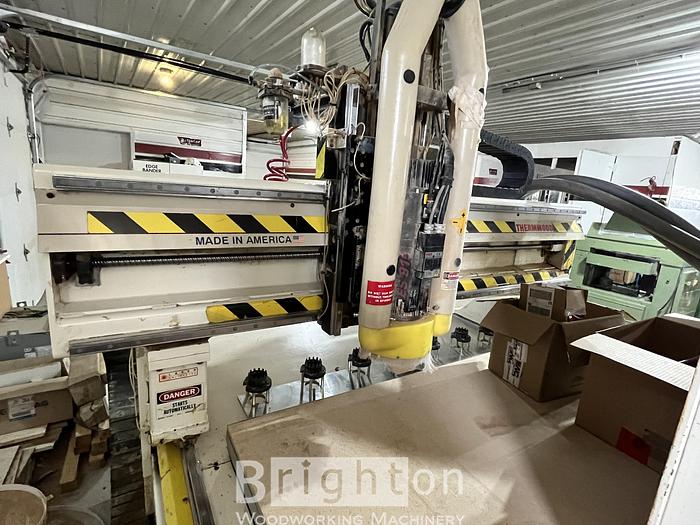

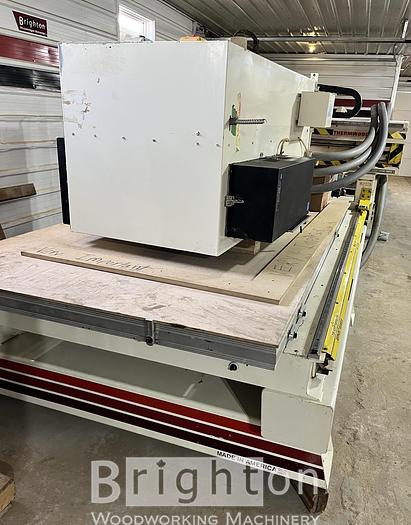

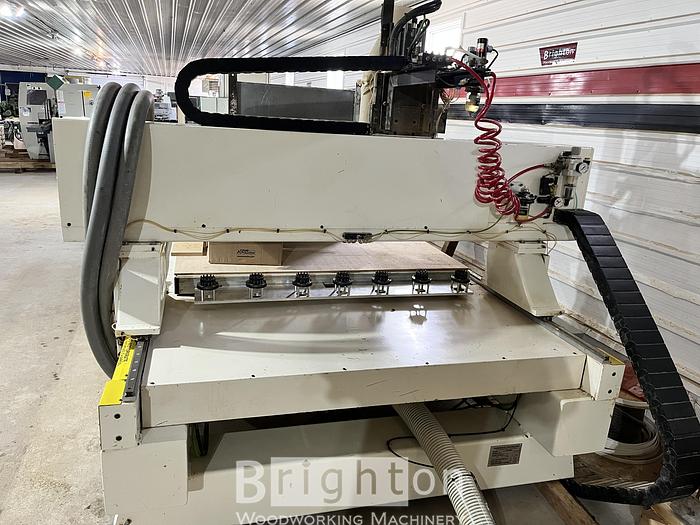

5′ x 10′ Moving Gantry with a machined aluminum table, single-zone aluminum vacuum plenum, and manual material stops around the table perimeter.
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | *******Thermwood |
| Model | CS45 Used flat table CNC |
| Year | 2006 |
| Condition | Used |

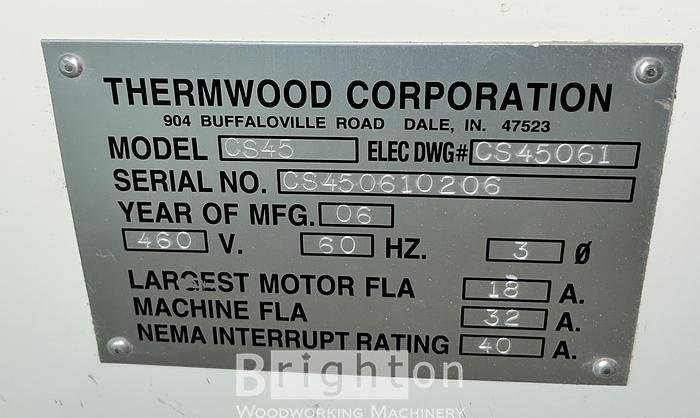

| Serial Number | CS450610206 |
| Stock Number | BM2359 |
| Quality | Very Good |

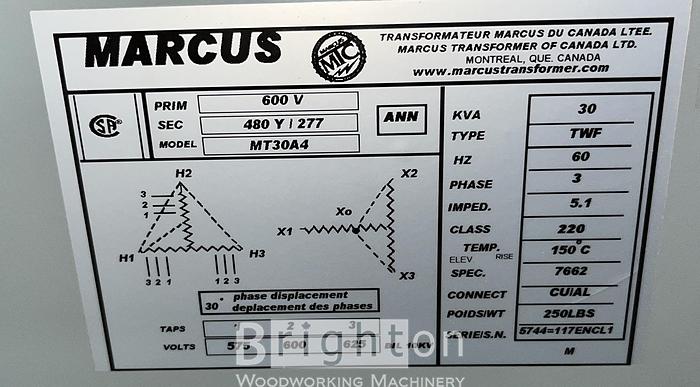

| Electrics | 600V / 3Ph / 60 Hz with included transformer |
Shipping details
| Width | ft |
| Height | ft |
| Length | ft |
| Weight | 5445 kg |
Additional Features
Equipped with:

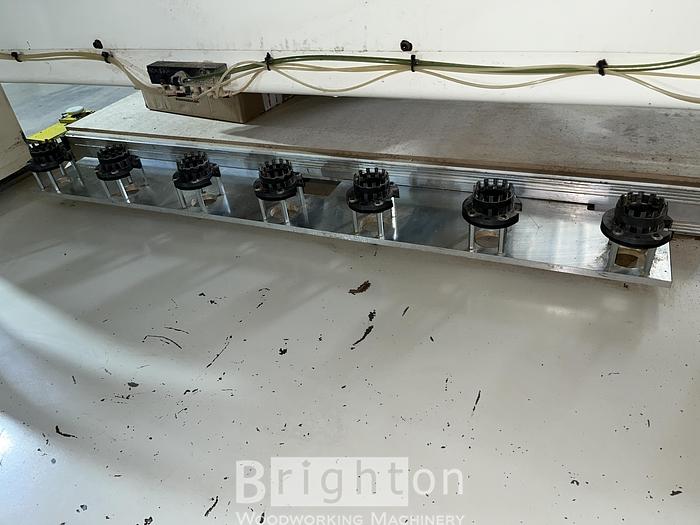

(1) 10 HP HSD BT-30 Type spindle with 7-position rear mount wine rack ATC, variable spindle speed from 3,000 – 24,000 RPM.
Features:
High performance closed loop AC Servo motors driving precision ball screws on all axes with feed speeds up to 1,200 IPM on the X- & Y-axis and 600 IPM on the Z-axis. Way & ball screw bearings serviced by an automatic lubrication system.
· Control:

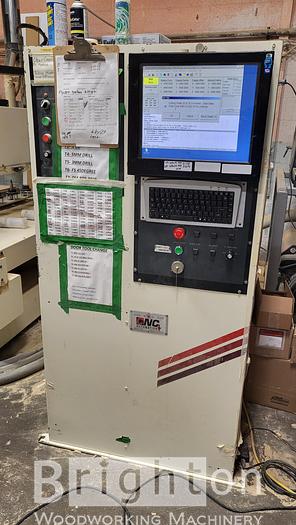

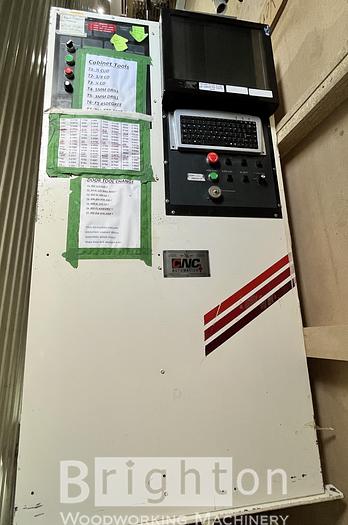

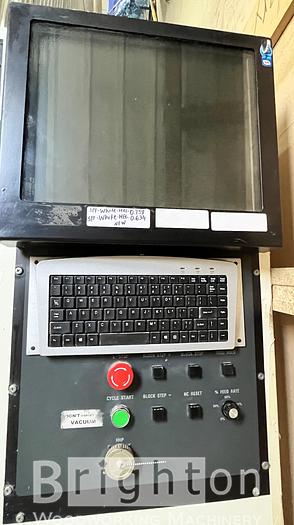

THERMWOOD Gen 2 “Supercontrol” Windows/XP based Control, “E-Cabinet” software ready, 3-axis simultaneous motion, hand held programmer with pulse generator and for feed rate and spindle speed override.
15″ Color monitor, 20.4 GB hard drive. CD ROM drive, 3-1/2″ floppy disk drive, 83-key/101-Qwerty keyboard for data entry, network card and RS-232 port for PC communications; mounted in an air conditioned Nema rated control cabinet.
· Comes complete with:

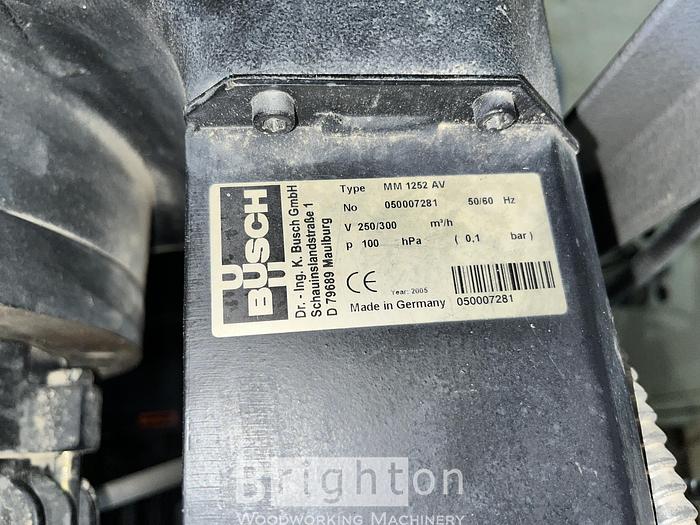

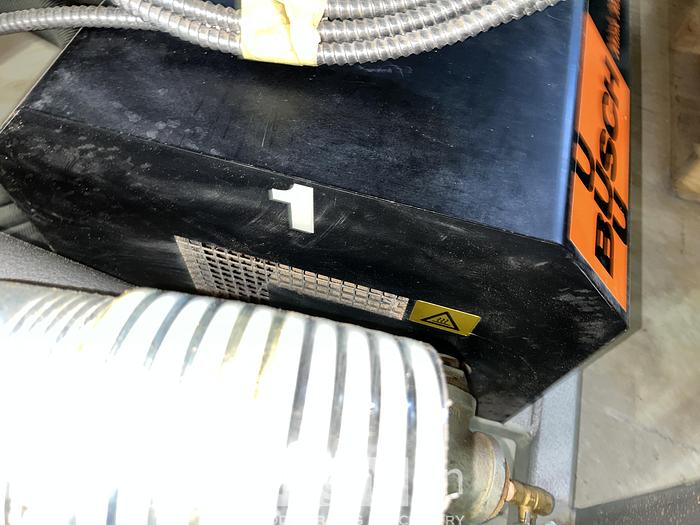

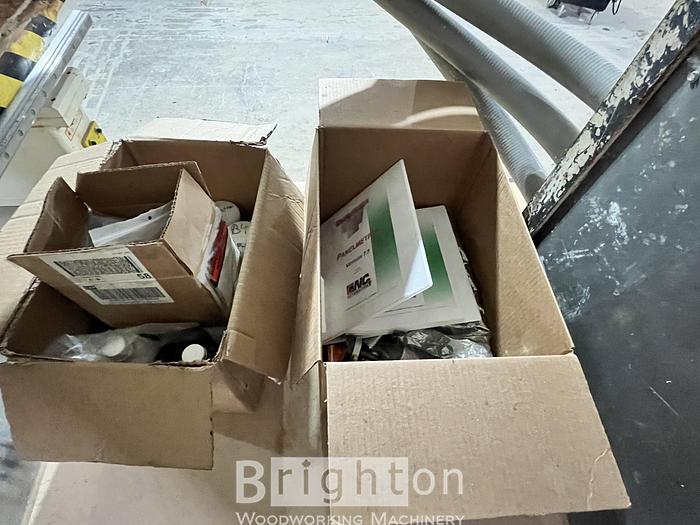

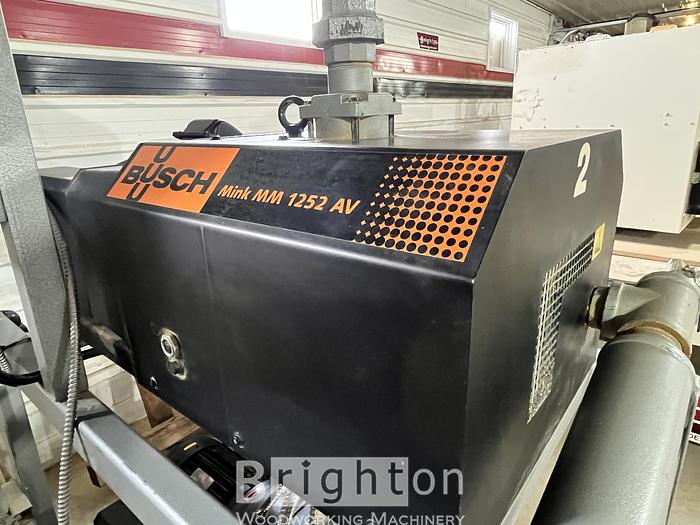

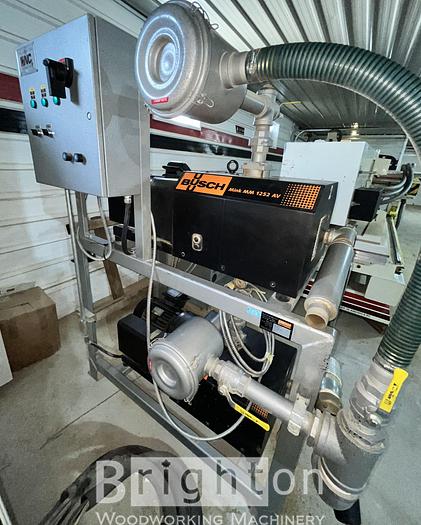

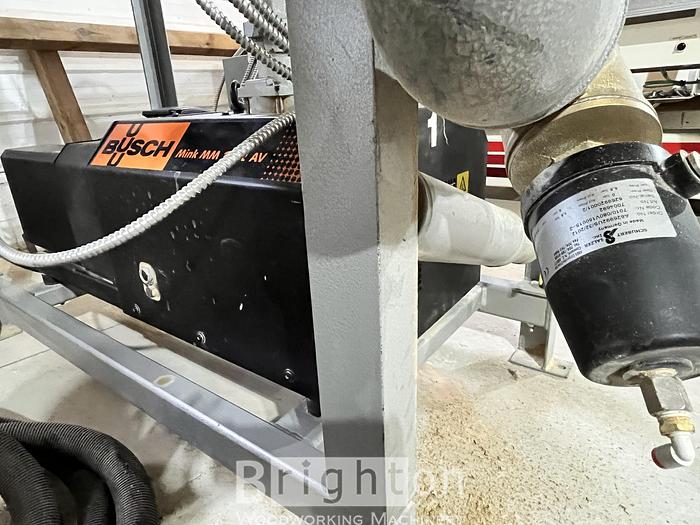

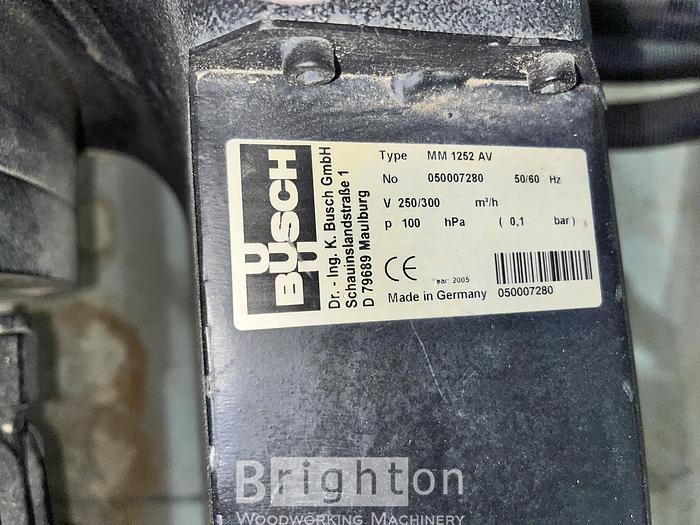

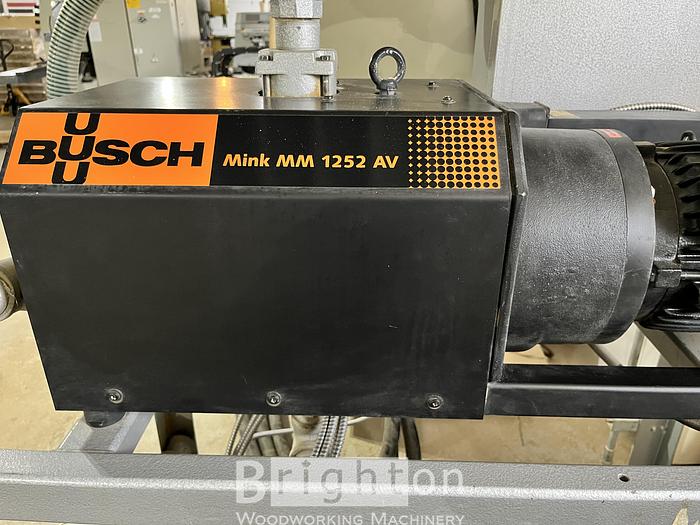

2 x 7.5 hp Butsch Vacuum pumps, assorted tool holders, label maker and scanner original documentation, and manuals.
Shipping details:
Weight: Approx 12,000 lbs
Main unit (w/controller): 170”L x 91”W x 86”H

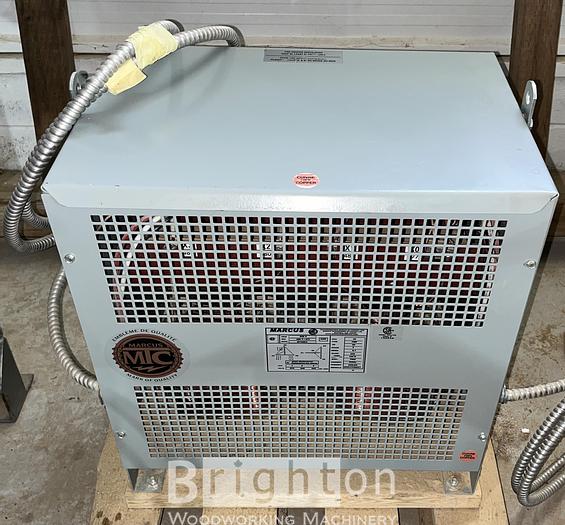

Transformer (w/skid): 35”L x 27”W x 31”H , (w/o skid): 21”L x 15”W x 26”H
Pumps(2): 65”L x 36”W x 73.5”H
