Gannomat Concept 70 eco used Case Clamp #BM2258

Gannomat Concept 70 eco used Case Clamp #BM2258

Uxbridge, Canada

orCall (647) 384-9663

Description

Gannomat Concept 70 eco used Case Clamp


Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!


* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Specifications

ManufacturerGannomat
ModelConcept 70 eco used Case Clamp
ConditionUsed
Stock NumberBM2258
QualityVery Good
Electrics220 V / 3 Ph / 60 Hz

Additional Features

The ECO is a dual platen clamp and the choice for most shops. The dual platens allow for clamping cases with partitions and fixed shelves along with modular cases as well. With adjustable pressing force from 300kg - 2200kg on both individually controlled beams the ECO gives you the ability to clamp the most sturdy or delicate work pieces.

Gannomat CONCEPT 70 ECO Dual Platen Case Clamp complete as follows:

Standard Equipment:

-Sturdy stress-free steel frame

-Top pressure beam with 6 steel bars

-Side pressure beam with 5 steel bars

-Counter pressure surfaces (bottom and side), 38mm thick solid laminated working surface

-Motorized adjustment of both pressure beams by precision trapezoidal-threaded spindles (for optimal lead and concentric accuracy); heavy duty machine nut with integral grease reservoir

-Pressing of the work pieces by electric motors (2 separate helical geared motors)

-Pressing force top pressure beam (horz) min. 500 up to max. 2200 daN(kg)

-Pressing force side pressure beam (vert) min. 300 up to max. 2200 daN(kg)

-Pressing velocity/adjustment rate of pressing beams with fine positioning through a 3 step selector switch 5/10/25mm/second *Plus Option gives beam speeds up to 50mm/second

-Pressure force of the beams is digitally regulated by a frequency changer for wear-free performance

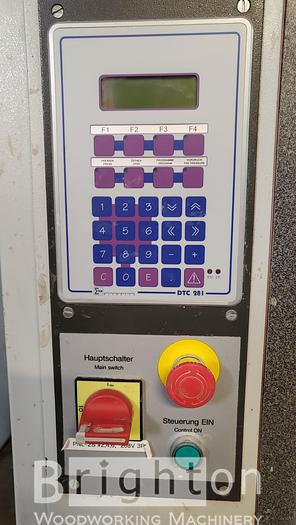

-Simple operation by 6 individual push buttons; 6 movement combinations of the pressure beams can be selected by the
control unit

-Adjustable clamping cycle time 0 – 30 minutes (changeable to seconds and hours) with automatic opening

-UL listed electrical components; Standard voltage 220v, 3 phase, 60 Hz

-Working dimensions:
-Length – Min 150mm (5.9 inches); Max 2550mm (100.4 inches)
-Height – Min 150mm (5.9 inches); Max 1400mm (55.1 inches)
-Depth -- 700 mm (27.55 inches)
