2017 The Original Saw Company Super Duty 3553, used 20 inch radial arm saw #BM2243


2017 The Original Saw Company Super Duty 3553, used 20 inch radial arm saw #BM2243

Uxbridge, Canada


The Original Saw Company, model 3553, 20 inch, used radial arm saw

Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.


ManufacturerThe Original Saw Company
ModelSuper Duty 3553, used 20 inch radial arm saw

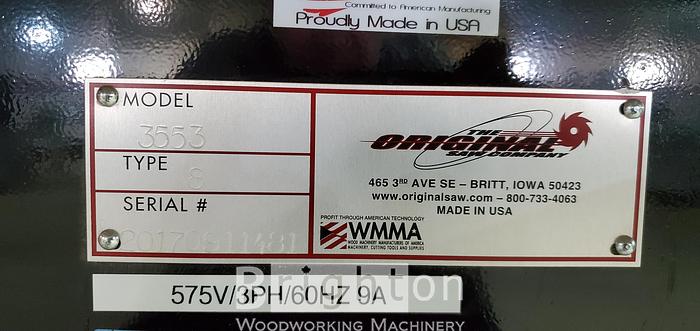

Serial Number20170911481
Stock NumberBM2243
QualityVery Good
Electrics575 V / 3Ph / 60 Hz

Additional Features

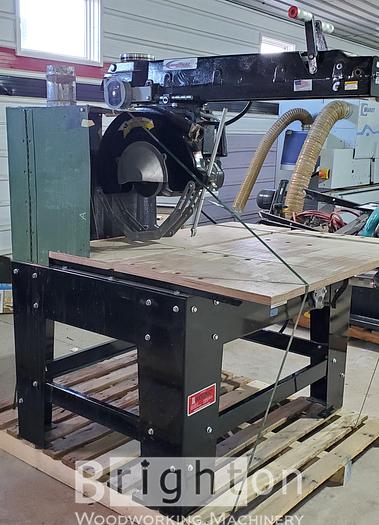

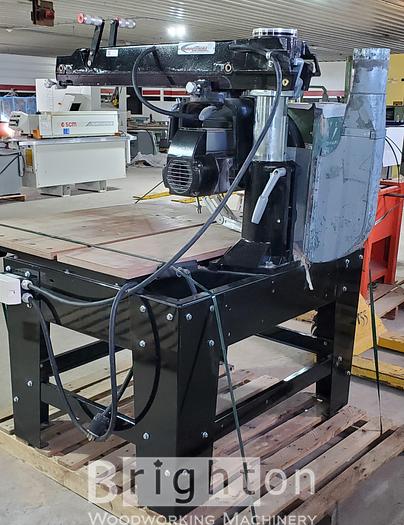

*Includes a home made dust collection hood (Shroud) as seen in pictures.
Price for new model 3553 saw is approx $14,000 Canadian. (click "Instant Price" to get our quote).
The Super Duty Series wood cutting saws are the ultimate radial arm saws of the industry. Featuring a large 7.5 horsepower arbor motor, they are capable of operating 2 to 3 shifts per day in an industrial wood cutting environment. These radial arm saws are capable of a wide variety of wood cutting operations including miter cutting, bevel cutting, compound miter work as well as dado operations and can cut off wood that is up to 6 1/4" thick in a single pass. These saws can be outfitted with a powered carriage option that converts the machine to push button operation.

These radial arm saws weigh in at a massive 850 pounds and are constructed of cast and ductile iron for vibration free operation. These saws are much more than a radial arm saw. When coupled with optional equipment, they are a wood cutting platform for a wide variety of cutoff work as well as dado operations both in manual and semi-automatic modes. Our American made saws are built in our Northern Iowa facility with American castings and American made motors.


Crosscut: 24" (609 mm)
Height: 64" (1626 mm)
Depth: 51" (1296 mm)
Blade Size (Dia): 20" (500 mm)
Series Specific Highlights:

7.5 hp 3 phase motor
Automatic blade braking system
Carriage return spring
Adjustable cross cut stop
Standard lower elevation on front of frame
24" crosscut on Medium arm machines (cat# 3551, 3571, 3553, 3554)
Base column lock on all Super Duty models
Precision carriage riding on 8 wide contact double row ball bearings, providing a very smooth vibrations free travel.
Oversized MDF table top
Powder coated heavy gage steel frame and legs
Standard work table height 33"
Arbor nut and precision ground blade collars
Optional Equipment:

Motors: (taken from new dealer website)

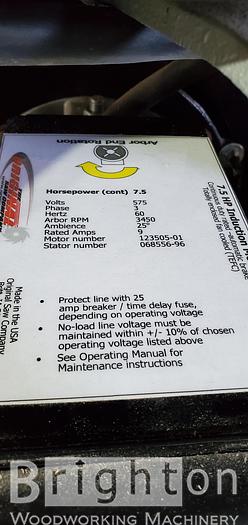

All Super Duty Series motors are manufactured in Northern Iowa facility. The Original Saw Company produces thier own motors which allows them to uphold a very high level of quality in our machines. These totally enclosed fan cooled (TEFC) motors are manufactured with cooling ducts that move air through the motor laminations to keep them cool while keeping the internal portion of the motor sealed from dust and contamination. These motors also offer the added benefit of an integrated electro-mechanical brake system. These brake systems continue to operate even when the power drops out. Electronic brake systems cannot compete with the durability or reliability of our electromechanical brake systems.
