2010 KOCH SPRINT-PTP 3/1300 CNC BORE, GLUE & DOWEL INSERTER

2010 KOCH SPRINT-PTP 3/1300 CNC BORE, GLUE & DOWEL INSERTER

Pricing and availabilty coming soon

Ontario, Canada

orCall (647) 384-9663

Description

KOCH Sprint-PTP-3-1300 CNC BORE, GLUE & DOWEL INSERTER


Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!


* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Specifications

ManufacturerKOCH
ModelSPRINT-PTP-3/1300 CNC BORE, GLUE & DOWEL INSERTER
Year2010
ConditionUsed

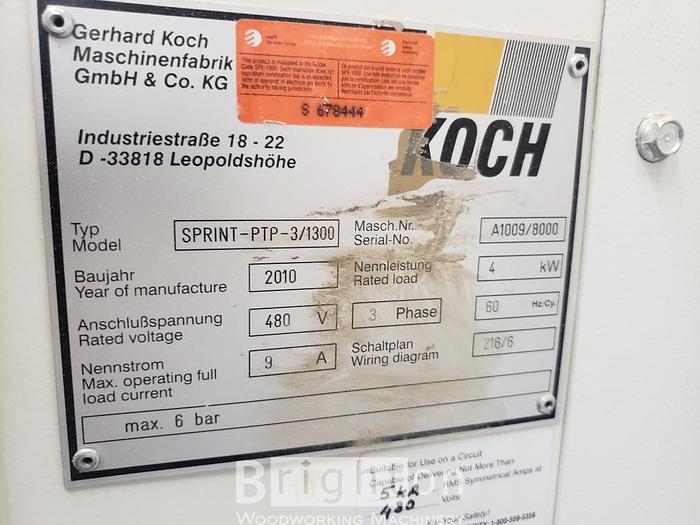

Serial NumberA1009/8000
Stock NumberBM2221
QualityVery Good
Electrics480 V / 3 Ph / 60 Hz

Additional Features

-- Specifications:
Automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at programmed random spacing.
-- Working Cap:
Stock length (Y) from 4.25" - 31.5" (110 mm - 800 mm), stock width (X) from 0.75" - 51" (20 mm - 1,300 mm), stock thickness (Z) from 0.5" - 2.4" (4 mm - 60 mm), max. boring depth 1.1" (28 mm).
51" (1,300 mm) X-axis divided into (4) work zones of 12" (305 mm) ea., one part can be processed, while the other is being unloaded or loaded.
-- Equipped with:
(4) Stock clamping cylinders;
(1) Horizontal boring spindle,
7,200 RPM,
powered by 1.25 HP motor;
(1) Glue injection & dowel inserting system,
glue delivery system is a GRACH "Husky 307" glue pump;
Dowel inserter is set up for 8 mm dia. x 30 - 35 mm long dowels (other dimensions available).
-- Operator & Machine Control:
NC Front end with 10.
