2018 SCM ME20, used edgebander
2018 SCM ME20, used edgebander
Uxbridge, Canada
Description
Single phase, like new, very nice, clean, compact hot melt SCM ME20 edgebander.
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | SCM |
| Model | ME20, used edgebander |
| Year | 2018 |
| Condition | Used |

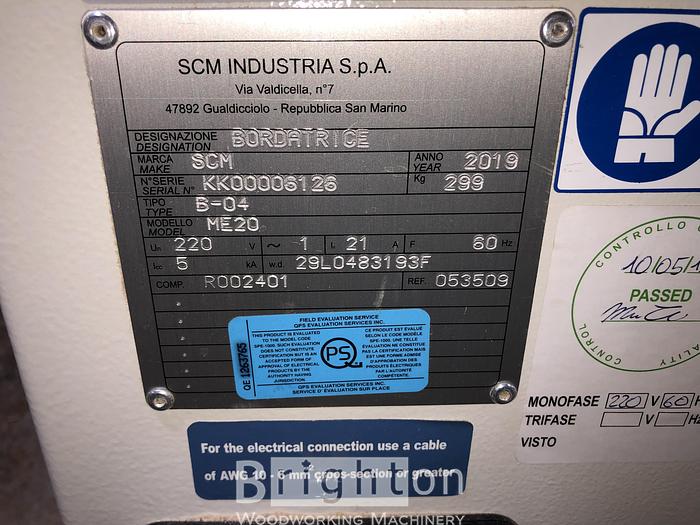

| Serial Number | KK00006126 |
| Stock Number | BM2222 |
| Quality | Very Good |
| Electrics | 220 V / 1 Ph / 60 Hz |
Additional Features
Main Features:

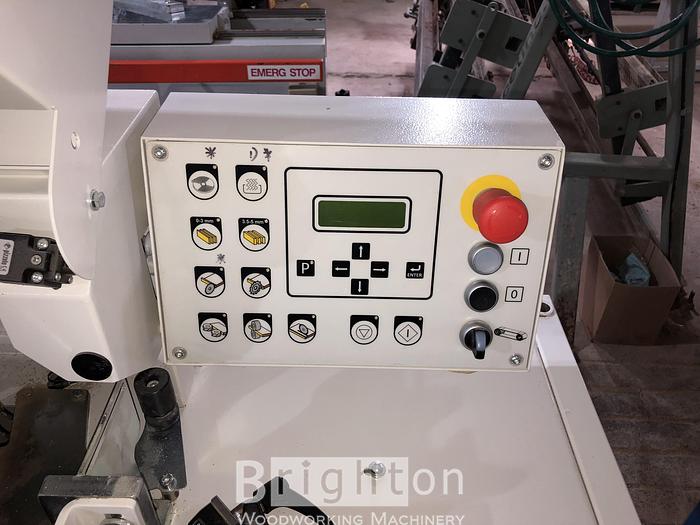

Accessible and serviceable from the front of the machine via hood lift and strut. Control panel mounted on the front
Panel feed by means of a top feeder with high-adherence toothed belt with steel cables inside
Telescopic front support with rollers for the entire machine length
Hot melt glue with quick heat up system and internally Teflon coated to allow an easy glue replacement
Temperature adjustment of the applied glue integrated in the PLC control
Device for automatic recovery of unused glue
Automatic edge loading system for rolled edges with shear device for 2mm maximum thickness edges, and 50mm max height
End cutting unit: Guillotine end cut at 90°on the leading and trailing edges of the panel. Possibility to exclude the unit through the PLC control
Adjustable infeed fence with numeric readout of the edge thickness
Automatic lowering of the glue pot temperature after a temporary machine non-use
Superposed Trimming Unit. Equipped with vertical copying pads for an accurate positioning of tools with reference to the cutting point. The unit is provided with 72mm diameter, combined cutters: the radius part of the cutter is used to trim 2mm radius edges and chamfered thin edges
The straight part of the cutter is used for the trimming of edges in wood up to 5mm. Changing from radius edge to edge in wood is done easily moving the cutters axially. The edge thickness is shown by 2 numeric readouts.
95 PSI operating pressure
6 metres/min feed speed
Electrical requirements: 230v, single phase, 22 amps
Machine weight: 685 lbs
Required footprint: 52” x 93”
Required footprint: 52” x 93”
The machine can work 2 mm edges on panels up to 25 mm thickness, For thicker panels, results are granted with maximum thickness 1.5 mm
Made in Italy
Technical Features:
Working table dimensions: 1950 x 180 mm
Working table height: 904 mm
Min/Max rolled edges thickness: *0.4/2 mm (*0.6 mm minimum worktable PVC edge thickness)
Max. thickness of edges in strips: 5 mm
Min. / max. working height: 12 / 50 mm
Min. panel length / width with rolled edges: 180 / 65 mm
Min. panel length (frontal end cutting only): 120 mm

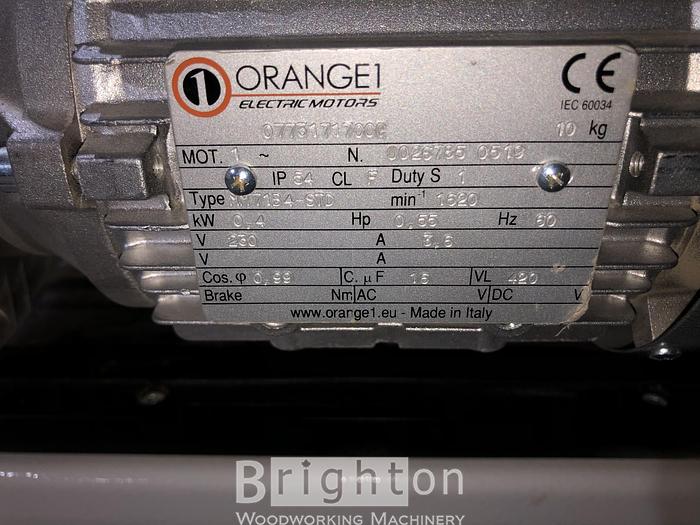

Feed motor power S1: 0.25 kW
Feed speed: 6m / min
Pneumatic operating pressure: 6.5 bar
Operating temperature: 190°C
Exhaust outlet diameter (base): 120 mm
Exhaust outlet diameter (glue pot): 60 mm
