Description

2018 Ayotte Techno-Gaz Oven Dryer System equipped with Flash Off Booth 16’ long X 14’ wide X 9’high, Batch oven 20’ long X 14’ wide X 9’ high, 4 X HT-200 systems, and the appropriate air recirculation and exhaust systems.


Purchased new for $125,000



Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!

Specifications

ManufacturerAyotte Techno-Gaz
ModelOven Dryer System
Year2018
ConditionUsed
Stock NumberBBM2191
QualityVery Good
Electrics600 V / 3 Ph / 60 Hz
Note:All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Additional Features

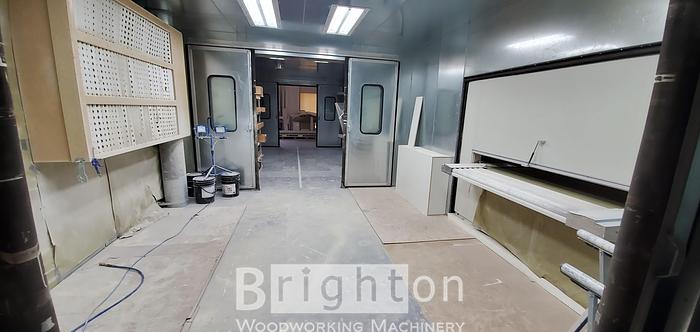

Flash off booth includes:
- Customization to fit to a Superfici machine Model Compact #3.
- Galvanized steel panel 18 gages, none painted.
- 1 X set of sliding glass doors, 8’high x 6 wide.
- 3 X roof reinforcement steel L shape fairing.
- 1 X Exhaust duct.
- 1 X Exhaust fan 3000 CFM variable speed (VFD) 600 V. / 2 HP.
- 2 X Set of lights 4 feet tubes, 54 Watts.
- Wall air intake cut off 40’’ X 40’’ , with 2 air filters 20’’ X 20’’

Batch oven includes:
- Customization to be attached to flash off booth.
- Galvanized steel panel 18 gages, none painted.
- 2 X set of sliding glass doors, 8’high x 6 wide.
- 4 X roof reinforcement steel L shape fairing.
- 2 X Set of lights 4 feet tubes, 54 Watts.
- 1 X Exhaust fan 1500 CFM 600 V. / 2 HP with air duct.
- 1 X Air recirculation fan 5000 CFM 600 Volts 5 HP. Variable speed (VFD) with top of the oven air duct.
- 2 X Air recirculation duct 12’’ X 18’ on each side of the ceiling. Wall air intake cut off 40’’ X 40’’ with 2 air filters 20’’ X 20’’

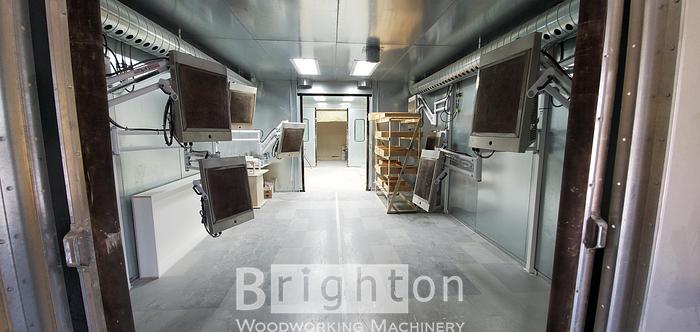

4 X catalytic paint drying systems Model Sun-Spot HT-200, with each HT-200 system consisting of:
- 2 X heating heads.
- 2 X arms systems.
- 1 X wall attachment fix post 8 feet long.
- 1 X panel control
- 2 X 50 feet of flexible gas lines and electrical cables.
- 1 X gas train, main gas inlet, equipped with 2 X solenoid valves
HT-200 System’s technical requirements:
- Electrical per unit: 120 Volts/20 Amps, independent circuit (X 4)
- Gas requirements (Nat or LPG): 5 PSI/140 IWC, 30,000 BTU per unit X 4 = 120,000 BTU

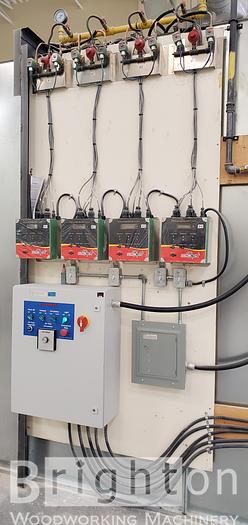

One electrical main control panel including:
- 1 X enclosure 24’’X 24’’X 8’’
- 1 X Disconnect 600 Volts / 30 Amps.
- 4 X Selectors auto/manual with pilot light.
- 1 X Interlock air flow switch, oven exhaust.
- 1 X Timer off delay 20 minutes.
- 1 X Variable frequency drive (VFD) 5HP / 600 Volts.
- 1 X Variable frequency drive (VFD) 2HP / 600 Volts.
- 1X Transformer 600 Volts / 120 Volts for lighting.
- 2 X VFD speed control dimmers.
- Wiring from panel to the fan and to the lighting
